The active compensation device (APF & SVG) is connected in parallel with the reactive power compensation component, making full use of the harmonic elimination function and efficient linear compensation function of the active compensation device to jointly undertake the tasks of reactive power compensation and harmonic control. This technology has fast and effective dynamic two-way reactive power compensation and efficient filtering functions for modern buildings such as wave-loaded industrial and commercial construction, hospitals, and data centers.。
.
Technical advantages
.
|
Functional characteristics |
Dynamic reactive power compensation |
Dynamic filter hybrid compensation |
|
Control method |
Independent controller to control group switching |
Capacitor bank + SVG / APF module + dedicated controller, more stable and fast |
|
Output reactive power |
Group output with dead zone |
Linear output, stable and stable |
|
Ability to compensate |
Grouping and grading compensation |
Continuous compensation, nearly 1 throughout |
|
Response time |
≤20ms |
≤10ms, better dynamic performance |
|
Service life |
Zero crossing switching, no impact, long service life |
Longer overall life |
|
Three-phase balance |
Generally requires special design |
The effect is obvious |
|
Filtering ability |
Specific harmonic |
Filter out 2 ～ 50th harmonic |
|
Application prospects |
Current mainstream products |
Wide application prospects |
.

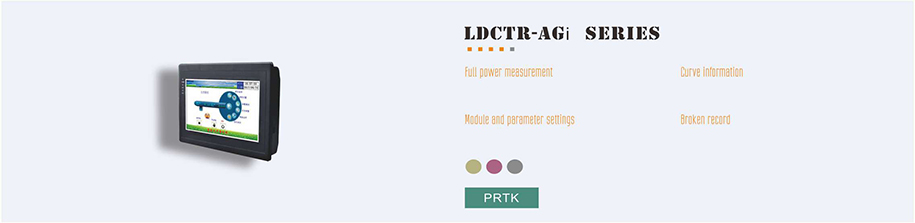

High-speed dynamic controller
.
¤ Model: LDCTR-AGi
¤ LCD screen operation interface for APF, SVG, TAPF, TSVG. It communicates with the module through the Rs485 interface, which can set the parameters and view the data of the module.
.
TSVG
.
¤ Continuous tuning: continuous adjustment of reactive power capacity to achieve stepless compensation;
¤ Bidirectional: Reactive power can be continuously and dynamically adjusted in both directions, that is, to compensate the inductive load and the capacitive load；
¤ Modular: Modular design, beautiful appearance and easy maintenance;
¤ Fast response: less than 5ms, can suppress voltage fluctuations, weaken load power impact, and protect electrical equipment;
¤ Low noise: less than 50dB;
¤ Low loss: small loss, less than 1%;
¤ Convenient maintenance: Modular design, which can be inspected separately without affecting each other;
¤ Full protection: complete protection system technology to monitor the working status of components;
¤ Intelligent: digital control and parameter setting, large screen LCD screen, with waveform display, harmonic content display and event recording functions
TAPF
¤ Instantaneous reactive power algorithm, response speed is 10ms
¤ Real-time monitoring of voltage, current and power factor
¤ Real-time tracking of load changes with a dynamic period of (10 ~ 40ms)
¤ Can avoid capacitor resonance, TSC can shunt 20% ~ 35%, APF can filter out about 98% of characteristic sub-harmonic current
¤ With phase separation compensation, harmonic elimination function, three-phase unbalance function.

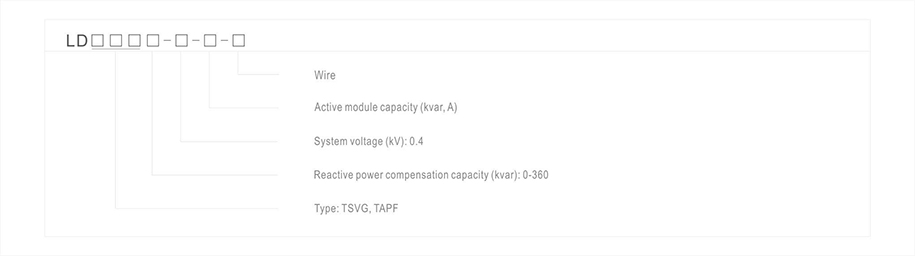

Model definition
