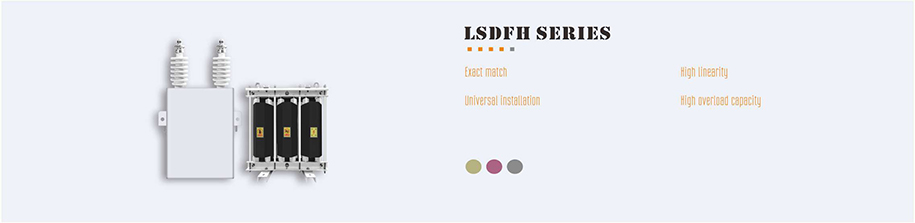

LSDFH type high-voltage reactive power compensation component is composed of high-voltage capacitors and high-voltage anti-resonant reactors, which eliminates specific harmonics. It suppresses the distortion of the grid voltage waveform, suppresses the harmonic components flowing through the capacitor bank, and limits the inrush current of the capacitor bank. High-voltage compensation components have become essential equipment in reactive power compensation devices. At present, it is widely used as an important reactive power compensation device in the construction of power grids in various industries.
Technical Parameters
.
¤ Voltage range: 3.15～12KV, 50 / 60Hz
¤ Compensation range: 50～2400KVar
¤ Reactance rate: 6%, 12%
¤ Noise: <65dB
¤ Design life:> 215000h
¤ Operating temperature: -25 ℃ ～ + 45 ℃
¤ Storage temperature: -40 ℃ ～ + 70 ℃
¤ Relative humidity: <95%
¤ Altitude: conventional 1000m, other customized
¤ Operating environment: indoor, no pollution, no vibration
¤ Executive Standard: IEC
.

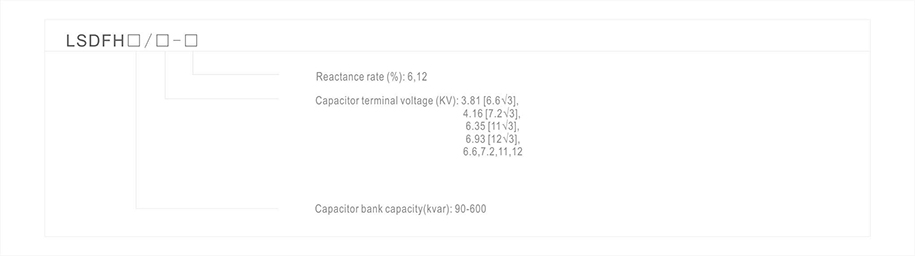

Model definition
.
.
High-voltage reactive power compensation components
.
|
Installed capacity (kvar) |
Type |
Matching capacitor |
Matching reactor |
|
100 |
LSDFH100/6.93-6 |
3×LDHVC34/6.93-1 |
LDHVR100-3/10-6 |
|
200 |
LSDFH200/6.93-6 |
3×LDHVC67/6.93-1 |
LDHVR200-3/10-6 |
|
300 |
LSDFH300/6.93-6 |
3×LDHVC100/6.93-1 |
LDHVR300-3/10-6 |
|
400 |
LSDFH400/6.93-6 |
3×LDHVC134/6.93-1 |
LDHVR400-3/10-6 |
|
500 |
LSDFH500/6.93-6 |
3×LDHVC167/6.93-1 |
LDHVR500-3/10-6 |
|
600 |
LSDFH600/6.93-6 |
3×LDHVC200/6.93-1 |
LDHVR600-3/10-6 |
|
750 |
LSDFH750/6.93-6 |
3×LDHVC250/6.93-1 |
LDHVR750-3/10-6 |
|
800 |
LSDFH800/6.93-6 |
3×LDHVC267/6.93-1 |
LDHVR800-3/10-6 |
|
900 |
LSDFH900/6.93-6 |
3×LDHVC300/6.93-1 |
LDHVR900-3/10-6 |
|
1000 |
LSDFH1000/6.93-6 |
3×LDHVC334/6.93-1 |
LDHVR1000-3/10-6 |
|
1200 |
LSDFH1200/6.93-6 |
3×LDHVC400/6.93-1 |
LDHVR1200-3/10-6 |
|
1500 |
LSDFH1500/6.93-6 |
3×LDHVC500/6.93-1 |
LDHVR1500-3/10-6 |
|
1800 |
LSDFH1800/6.93-6 |
6×LDHVC300/6.93-1 |
LDHVR1800-3/10-6 |
|
2000 |
LSDFH2000/6.93-6 |
6×LDHVC334/6.93-1 |
LDHVR2000-3/10-6 |
.

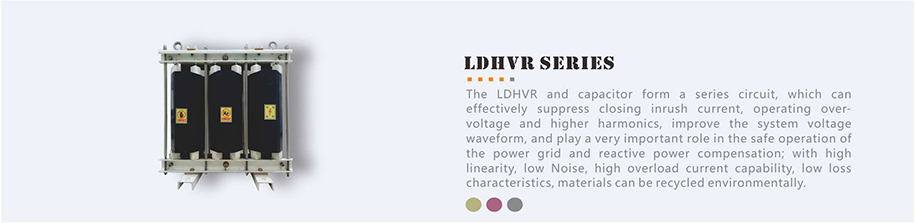

High voltage reactor
.
Technical Parameters
.
◇ Rated voltage: 6～35KV
◇ Rated capacity: 3～144KVar
◇ Supporting capacitor capacity: 50-2400KVar
◇ Common reactance rate: 6%, 12%
◇ Inductive reactance error: 0 ～ + 3%
◇ Cooling method: air self-cooling
◇ Insulation grade: F, H (optional)
.
Performance characteristics
.
The iron core is made of high-quality, low-loss imported cold-rolled oriented silicon steel sheet, which is processed by the dipping process. The entire coil is made of epoxy casting. The key parts are added with shock absorption measures to ensure that the product has good insulation, high voltage resistance, low noise, and long length. Life-span and hydrophobic
The electric field of the coil is evenly distributed, the temperature rise is low, and the short-circuit resistance is strong; the effective cross-sectional area of the core is large, the magnetic leakage is small, and the loss is low
Advanced surface treatment technology, moisture-proof, flame-proof, crack-free, maintenance-free, small overall size, light weight, beautiful appearance, convenient installation
.

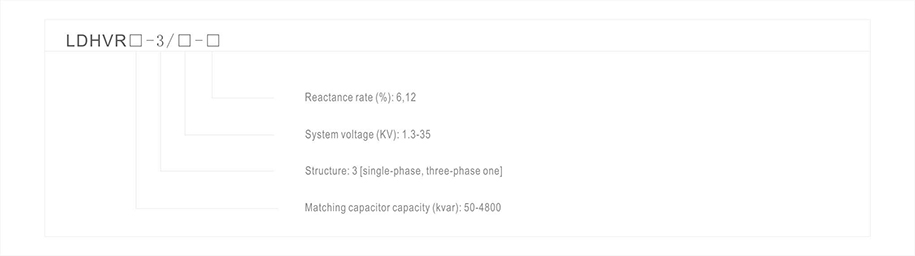

Definition of High Voltage Reactor Model
.
