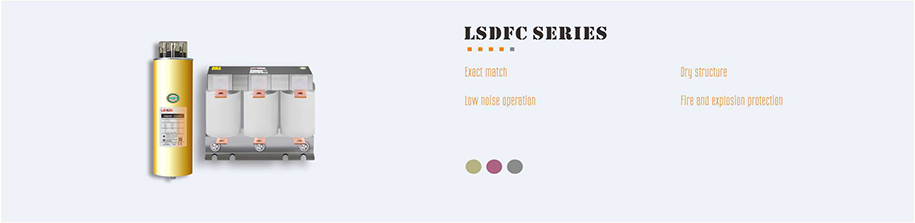

The LSDFC type low voltage filter compensation component is a switching unit with relatively independent compensation and filtering function formed by combining capacitors and reactors according to the requirements according to the load. The filter reactor with a certain reactance coefficient and the filter capacitor with a certain capacity are appropriately proportioned Configuration to form a filter compensation loop to achieve the purpose of filter compensation. It consists of dry-type self-healing capacitor and low-voltage reactor。
.
ØTechnical Parameters
.
¤ Rated voltage: 230-1300V, 50 / 60Hz
¤ Reactance rate: 7%, 14%
¤ Temperature and humidity requirements: -25 ℃-+ 50 ℃, maximum humidity 95%
¤ Installation conditions: indoor installation, the highest altitude does not
exceed 4000 meters
.
Model definition
.
.
Economic significance of reactive power compensation
.
Capacity (KVar) |
Type |
Voltage (V) |
Reactance rate |
Configuration |
Remark |
20KVar |
LSDFC20/480-7 |
480V |
7% |
1×LDCR20/480F3,1×LDTRS20/480-7 |
Three-phase complement System voltage 400V Reactance rate 7% |
25KVar |
LSDFC25/480-7 |
480V |
7% |
1×LDCR25/480F3,1×LDTRS25/480-7 |
|
30KVar |
LSDFC30/480-7 |
480V |
7% |
1×LDCR30/480F3,1×LDTRS30/480-7 |
|
40KVar |
LSDFC40/480-7 |
480V |
7% |
1×LDCR40/480F3,1×LDTRS40/480-7 |
|
50KVar |
LSDFC50/480-7 |
480V |
7% |
2×LDCR25/480F3,1×LDTRS50/480-7 |
|
60KVar |
LSDFC60/480-7 |
480V |
7% |
2×LDCR30/480F3,1×LDTRS60/480-7 |
|
15KVar |
LSDFC15-3/280-7 |
280V |
7% |
3×LDCR5/280F1,1×LDTRS15-3/280-7 |
Single-phase compensation System voltage 400V Reactance rate 7% |
30KVar |
LSDFC30-3/280-7 |
280V |
7% |
3×LDCR10/280F1,1×LDTRS30-3/280-7 |
|
45KVar |
LSDFC45-3/280-7 |
280V |
7% |
3×LDCR15/280F1,1×LDTRS45-3/280-7 |
.

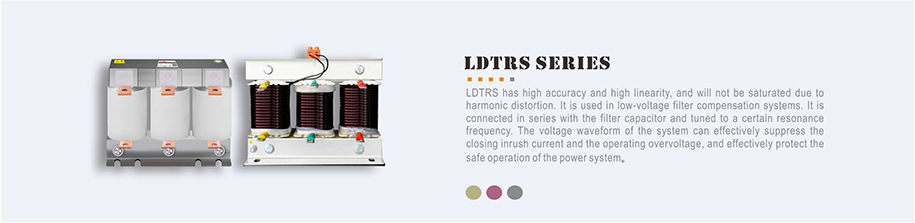

Low voltage reactor
.
.
Technical Parameters
.
◇ Working voltage: 230 ~ 1300V 50Hz / 60Hz
◇ Working current: 3 ~ 1600A
◇ Overload capacity: 1.35In continuous, 1.5In continuous 60s
◇ Maximum current: 1.8In for 60s
◇ Inductive reactance error: 0 ~ + 3%
◇ Reactance rate: 7%, 14%, etc. others can be customized
◇ Temperature rise: 1.35In continuously, temperature rise ≤120 ℃
(resistance method)
◇ Pressure drop: <4%
◇ Linearity: 2.0 times rated current, L> 0.97
◇ Insulation withstand voltage: 0.23KV ~ 0.6KVAC4000V / 1 minute
◇ Temperature protection: + 125 ° over-temperature break (normally closed)
◇ Noise: not more than 35 ~ 40dB
◇ Electric strength: iron core-winding 3KVAC / 5mA / 10s without flashover
(factory)
◇ Insulation class: H、F
◇ Temperature and humidity range: -40 ℃ ~ + 55 ℃, ≤95%
◇ Altitude: ≤4000m
◇ Protection level: Ip20
.

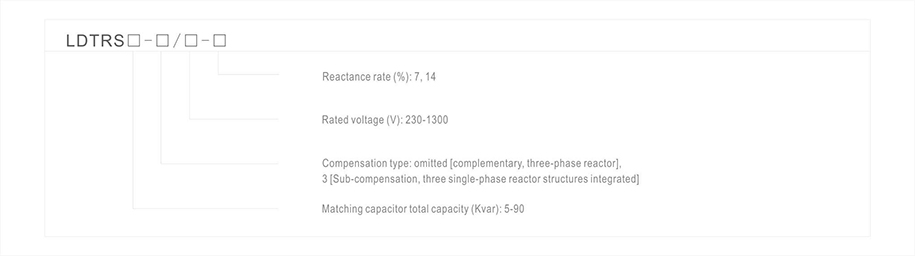

Reactor model definition
.
.
LDTRS reactor standard parts
.
Type |
Matching capacitor |
Voltage(V) |
rate |
Over temperature |
Description |
LDTRS25/480-7 |
1×LDCR25/480F3 |
480 |
7% |
有 |
Three-phase reactor For three-phase mutual compensation |
LDTRS30/480-7 |
1×LDCR30/480F3 |
480 |
7% |
有 |
|
LDTRS40/480-7 |
2×LDCR20/480F3 |
480 |
7% |
有 |
|
LDTRS50/480-7 |
2×LDCR25/480F3 |
480 |
7% |
有 |
|
LDTRS60/480-7 |
2×LDCR30/480F3 |
480 |
7% |
有 |
|
LDTRS25/525-14 |
1×LDCR25/525F3 |
525 |
14% |
有 |
|
LDTRS30/525-14 |
1×LDCR30/525F3 |
525 |
14% |
有 |
|
LDTRS40/525-14 |
2×LDCR20/525F3 |
525 |
14% |
有 |
|
LDTRS50/525-14 |
2×LDCR25/525F3 |
525 |
14% |
有 |
|
LDTRS60/525-14 |
2×LDCR30/525F3 |
525 |
14% |
有 |
|
LDTRS15-3/280-7 |
3×LDCR5/280F1 |
280 |
7% |
有 |
Single-phase reactor |
LDTRS30-3/280-7 |
3×LDCR10/280F1 |
280 |
7% |
有 |
|
LDTRS45-3/280-7 |
3×LDCR15/280F1 |
280 |
7% |
有 |
.

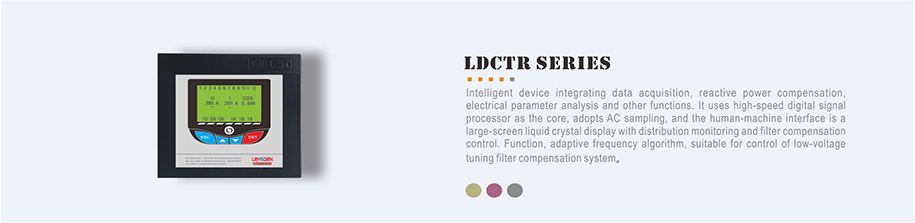

Intelligent controller
.
Technical Parameters
.
◇ Working voltage: 220V ± 20% 50Hz / 60Hz ± 5%
◇ Sampling voltage: 220V 50Hz / 60Hz ± 5%
◇ Sampling current: 5A 50Hz / 60Hz ± 5%
◇ Overvoltage protection: 235 ~ 280V; undervoltage protection: 200 ~ 180V
◇ Voltage over the upper limit: 7% ~ 15%
◇ Power consumption: less than 15W
◇ Contact capacity: 250VAC 5A
◇ Design life: 3000000 times
◇ Operating temperature and humidity: -25℃~ + 55 ℃; less than 95% at 20 %
.

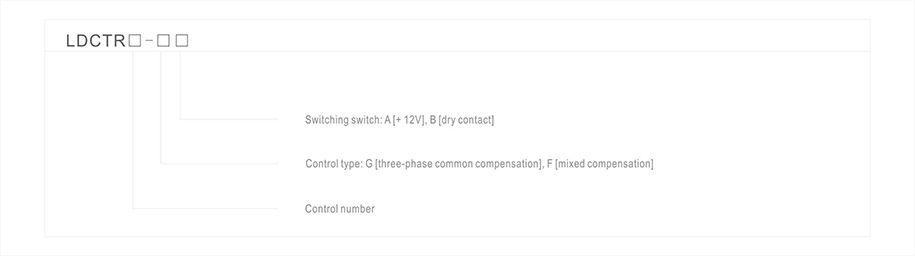

Controller model definition
.
.

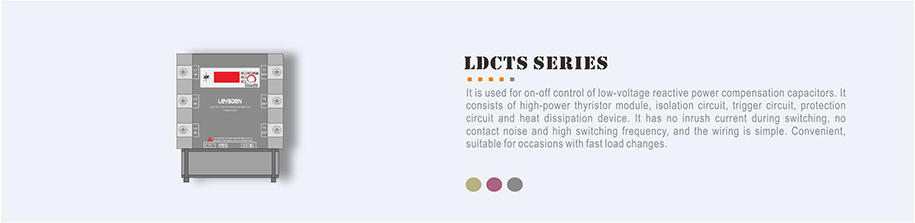

Switching switch
.
Technical Parameters
.
◇ Rated voltage: 250-400V AC, 690V AC
◇ Working voltage: 380V ± 20%
◇ Working frequency: 50Hz ± 5%
◇ Control terminal voltage: 12VDC, 10mA
◇ Environmental temperature and humidity: -25 ℃ ~ + 65 ℃, ≤80%
◇ Action response time: ≤10ms
◇ di / dt≥500A / μs dv / dt≥1000V / μs
◇ Design life:> 3 million times
◇ Digital display: available
◇ Altitude: ≤4000m
.

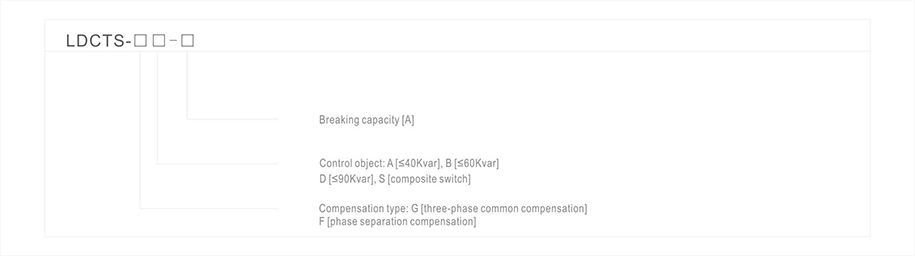

Switching switch model definition
.

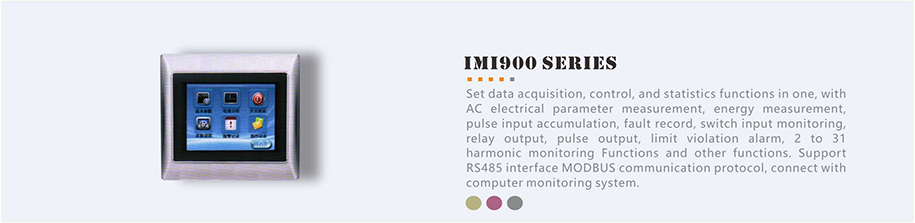

Harmonic monitoring instrument
.
Technical Parameters
.
◇ Working power: AC186 ~ 264V, 50 / 60Hz
◇ Voltage input: 0-450V
◇ Current input: 5A
◇ Switch input: 4 channels,isolation voltage 1500VDC
◇ Relay output: 2 contact capacity 5A / 250VAC
◇ Analog output: DC 4-20mA, accuracy is level 1
◇ Pulse output: constant 5000imp
◇ Communication: RS485, MODBUS-RTU
◇ Accuracy: U, I, 0.2S
◇ Environment: -25 ℃ ~ + 55 ℃, ≤95%
.

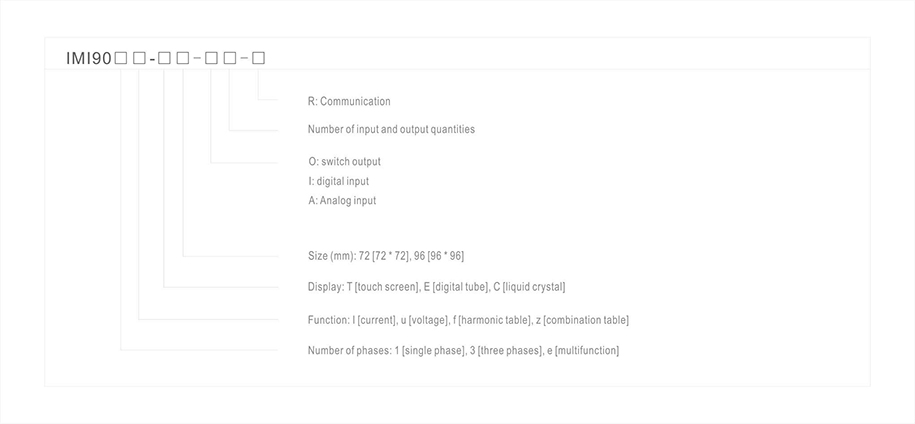

Harmonic monitoring instrument model definition
.
.
Standard selection of modular components
.
Capacity |
Static compensation |
Dynamic compensation |
Smart compensation |
Voltage |
Reactance rate |
Note |
10kvar |
LSDMC-M10/480-7 |
LSDMC-T10/480-7 |
LSDMC-i10/480-7 |
480V |
7% |
Three-phase complement |
15kvar |
LSDMC-M15/480-7 |
LSDMC-T15/480-7 |
LSDMC-i15/480-7 |
480V |
7% |
|
20kvar |
LSDMC-M20/480-7 |
LSDMC-T20/480-7 |
LSDMC-i20/480-7 |
480V |
7% |
|
25kvar |
LSDMC-M25/480-7 |
LSDMC-T25/480-7 |
LSDMC-i25/480-7 |
480V |
7% |
|
40kvar |
LSDMC-M30/480-7 |
LSDM-T30/480-7 |
LSDMC-i30/480-7 |
480V |
7% |
|
15kvar |
LSDMC-M15-3/280-7 |
LSDMC-T15-3/280-7 |
LSDMC-i15-3/280-7 |
280V |
7% |
Phase separation compensation |
20kvar |
LSDMC-M20-3/280-7 |
LSDMC-T20-3/280-7 |
LSDMC-i20-3/280-7 |
280V |
7% |
|
30kvar |
LSDMC-M30-3/280-7 |
LSDMC-T30-3/280-7 |
LSDMC-i30-3/280-7 |
280V |
7% |
.
