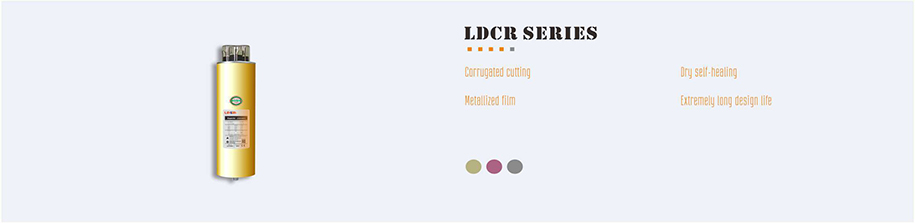

LDCR type low-voltage filter capacitor is specially used in low-voltage detuning filter system. Its metallized film adopts zinc-aluminum composite technology, adopts advanced safety protection technology, has excellent over-current and over-voltage capabilities, and uses ripple and smooth cutting technology in manufacturing. Effectively improve the thermal response and the density of the package, suppress the high inrush current, and effectively solve the problem of edge contact caused by the shrinkage effect of the edge of the winding film. Fill the electrolyte material and inert gas in a vacuum environment to improve the safety and reliability of the product. Cylindrical aluminum housing is easy to install and maintain.
.
ØTechnical Parameters
.
Voltage range: 230-1300V
Rated frequency: 50 / 60Hz
Rated capacity: 5～ 40kvar
Capacitance deviation: -5% ～ + 5%
Design life:> 210000h
Loss: 0.25W /kvar (customizable 0.2W / kvar)
Test voltage: 2.15 × Un (AC), 10s, between terminals
Overpressure: 1.1Un (8h / 24h), 1.15Un (30min / 24h)
Insulation level: 3KV / 8KV
Overcurrent: ≤2.0In (can be customized ≤4.0In)
Inrush current: 500In
Discharge characteristics: Residual voltage drops to 50V after 60s～ 180s discharge
Temperature range: -40 ℃～ + 55 ℃
Maximum allowable humidity: 95%
Altitude: ≤4000m
Protection level: Ip20
Type: F type H type L type Indoor vertical installation
Standard: IEC60831-1 (1996/2002) IEC60831-2 (1995)
.
Performance characteristics
.
It has a higher over-current capability. The level of the over-current index is directly related to the ability of the capacitor to withstand the inrush current and affect the service life of the capacitor;
The capacitance deviation is small and the accuracy is higher, which can ensure the resonance frequency of the filter compensation circuit to be stable and the filtering effect is good;
The power consumption is smaller, the power consumption affects the heating of the capacitor, the larger the power consumption, the higher the temperature of the capacitor, and the shorter the life;
With pressure-sensitive disconnection technology, this technology is used for each phase of the capacitor. When this capacitor cannot be used, it can be safely cut off from the circuit while maintaining good electrical insulation performance;
Adopt advanced production technology, high-frequency gold-blasted frosted tank, beautiful and corrosion-resistant, and avoid window breaking effect at the equipment management level.
.

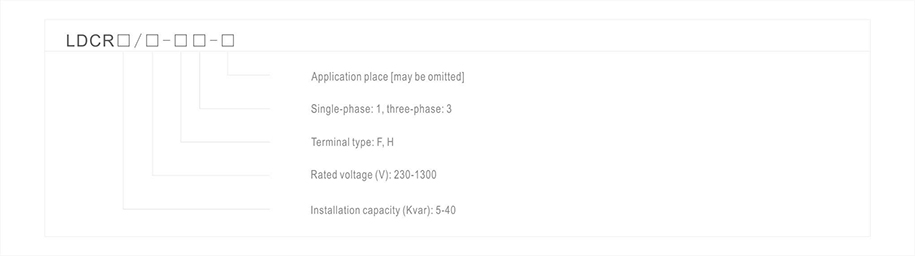

Model definition
.
.
Three-phase LDCR capacitor standard.
.
|
Capacity（KVar） |
Type |
Voltage（V） |
Current（A） |
Capacitance（μF） |
|
450V capacitor (three-phase triangle type)-suitable for 0.4KV power compensation system |
||||
|
10 |
LDCR10/450F3 |
450 |
12.83 |
157.27 |
|
15 |
LDCR15/450F3 |
450 |
19.25 |
235.90 |
|
20 |
LDCR20/450F3 |
450 |
25.66 |
314.54 |
|
25 |
LDCR25/450F3 |
450 |
32.08 |
393.17 |
|
30 |
LDCR30/450F3 |
450 |
38.49 |
471.81 |
|
35 |
LDCR35/450F3 |
450 |
44.91 |
550.44 |
|
40 |
LDCR40/450F3 |
450 |
51.32 |
629.08 |
|
480V capacitor (three-phase triangle type)-suitable for 0.4KV 7% detuning filter compensation system |
||||
|
10 |
LDCR10/480F3 |
480 |
12.03 |
138.23 |
|
15 |
LDCR15/480F3 |
480 |
18.04 |
207.34 |
|
20 |
LDCR20/480F3 |
480 |
24.06 |
276.45 |
|
25 |
LDCR25/480F3 |
480 |
30.07 |
345.56 |
|
30 |
LDCR30/480F3 |
480 |
36.09 |
414.68 |
|
35 |
LDCR35/480F3 |
480 |
42.10 |
483.79 |
|
40 |
LDCR40/480F3 |
480 |
48.11 |
552.90 |
|
525V capacitor (three-phase triangle type)-suitable for 0.4KV 14% detuning filter compensation system |
||||
|
10 |
LDCR10/525F3 |
525 |
11.00 |
115.55 |
|
15 |
LDCR15/525F3 |
525 |
16.50 |
173.32 |
|
20 |
LDCR20/525F3 |
525 |
21.99 |
231.09 |
|
25 |
LDCR25/525F3 |
525 |
27.49 |
288.86 |
|
30 |
LDCR30/525F3 |
525 |
32.99 |
346.64 |
|
35 |
LDCR35/525F3 |
525 |
38.49 |
404.41 |
|
40 |
LDCR40/525F3 |
525 |
43.99 |
462.18 |
|
800V capacitor (three-phase triangle type)-suitable for 0.69KV 7% detuned filter compensation system |
||||
|
10 |
LDCR10/800F3 |
800 |
7.22 |
49.76 |
|
15 |
LDCR15/800F3 |
800 |
10.83 |
74.64 |
|
20 |
LDCR20/800F3 |
800 |
14.43 |
99.52 |
|
25 |
LDCR25/800F3 |
800 |
18.04 |
124.40 |
|
30 |
LDCR30/800F3 |
800 |
21.65 |
149.28 |
|
35 |
LDCR35/800F3 |
800 |
25.26 |
174.16 |
|
40 |
LDCR40/800F3 |
800 |
28.87 |
199.04 |
.
Single-phase LDCR capacitor standard
.
|
Capacity（KVar） |
Type |
Voltage（V） |
Current（A） |
Capacitance（μF） |
|
250V capacitor (single phase)-suitable for 0.4KV power compensation system |
||||
|
5 |
LDCR5/250F1 |
250 |
20.00 |
254.65 |
|
8.3 |
LDCR8.3/250F1 |
250 |
33.20 |
422.72 |
|
10 |
LDCR10/250F1 |
250 |
40.00 |
509.30 |
|
15 |
LDCR15/250F1 |
250 |
60.00 |
763.94 |
|
280V capacitor (single-phase)-suitable for 0.4KV 7 %% single-phase and split-phase detuning filter compensation system |
||||
|
5 |
LDCR5/280F1 |
280 |
17.86 |
203.00 |
|
8.3 |
LDCR8.3/280F1 |
280 |
29.64 |
336.99 |
|
10 |
LDCR10/280F1 |
280 |
35.71 |
406.01 |
|
15 |
LDCR15/280F1 |
280 |
53.57 |
609.01 |
|
300V capacitor (single-phase)-suitable for 0.4KV 14% single-phase and split-phase detuning filter compensation system |
||||
|
5 |
LDCR5/300F1 |
300 |
16.67 |
176.84 |
|
10 |
LDCR10/300F1 |
300 |
33.33 |
353.68 |
|
15 |
LDCR15/300F1 |
300 |
50.00 |
530.52 |
